Custom Metal Keychain Size, Thickness and Attachment Guide
By Sunny Huang
Before ordering a custom metal keychain, confirm three separate measurements: the metal body's length and width, its thickness, and the overall length with hardware attached. This guide explains what to mark on the drawing and what to check on the assembled sample.
Looking for finished styles or a project quote? Explore our custom metal keychains. This guide covers size, thickness and attachment specifications.
Quick Answer: How Do You Choose a Custom Metal Keychain Size?
Choose the smallest reasonable size that keeps artwork clear, structure manufacturable, weight practical for the intended use and hardware compatible. There is no verified universal average keychain size in mm across all custom metal orders, so confirm body size separately from finished length instead of copying a generic average. For thickness, some flat stamped or enamel designs may be discussed at approximately 1.5-2.0 mm during early quotation, but the final value must follow the approved artwork, material, structure and sample. For irregular shapes, state maximum length and width separately and specify whether hardware is included.

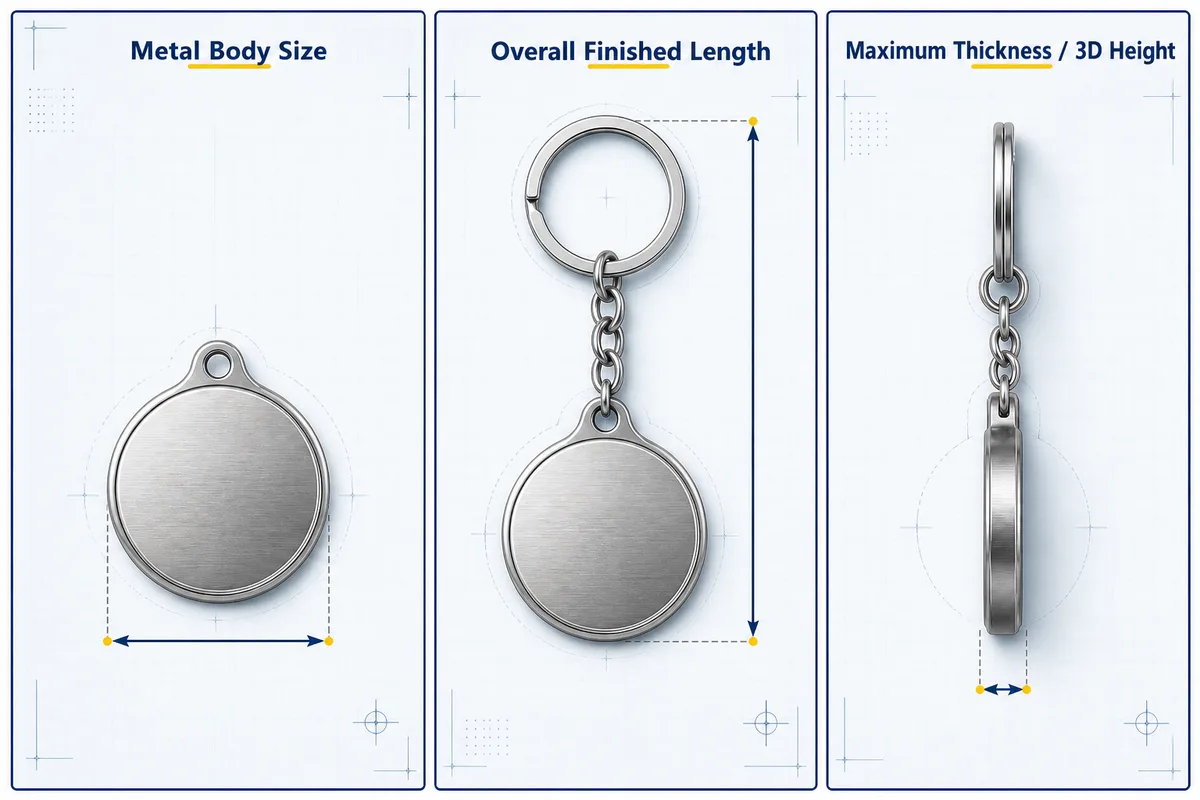

Understand the Three Key Measurements
When requesting a quote, define how every measurement is taken. For illustration only, two suppliers may both specify 50 mm, but one may mean the metal body while the other means the complete product from the top of the ring to the lowest point. Those are different purchasing specifications and should not be compared until the measurement method is clear.
| Measurement | What it means | Why buyers should state it |
|---|---|---|
| Metal body size | Length and width of the custom metal component at agreed reference points. | Controls logo area, readability, weight and room for holes or openings. |
| Overall finished length | Overall finished length is the end-to-end length of the complete assembled keychain in an agreed position. Mark both endpoints and the hardware position on the approval drawing. Record body dimensions separately. | Affects carry, packaging, hanging orientation and carton packing. |
| Body thickness / maximum 3D height | Body thickness is measured through the metal edge; maximum 3D height is measured from the agreed reference surface to the highest relief point. Record them as separate fields. | Affects weight, package clearance and forming-process choice. |
For irregular shapes, mark maximum length and width on the proof. For 3D work, show the maximum-height point separately from edge thickness and use both references on the sample record. Together, these are the key custom metal keychain dimensions a supplier should quote clearly.
How Keychain Size Affects Artwork and Usability
Size changes more than logo proportion. A larger body gives names, borders and cutouts more room but can add weight and package space. A smaller body may be easier to carry but may require simpler lettering, bridges or openwork. Show those changes in production artwork before tooling.
- Logo clarity: leave enough surface area for the main shapes and contrast.
- Small text: text that is legible on a screen may become unreadable after forming, plating, enamel application or printing. Review it at physical size.
- Edges and cutouts: borders, holes and open areas need sufficient surrounding metal for the selected die or mold process.
- Relief and 3D form: allow room for transitions and identify maximum 3D height separately from body thickness.
- Carrying and packaging: confirm the assembly fits its pouch, card, box or display.
- Transport: larger or heavier assemblies may change protection, carton organization and shipping weight.
There is no universal minimum line width or letter height for every material and process. Review fine details against the selected construction, finish and physical size instead of applying a generic production limit.

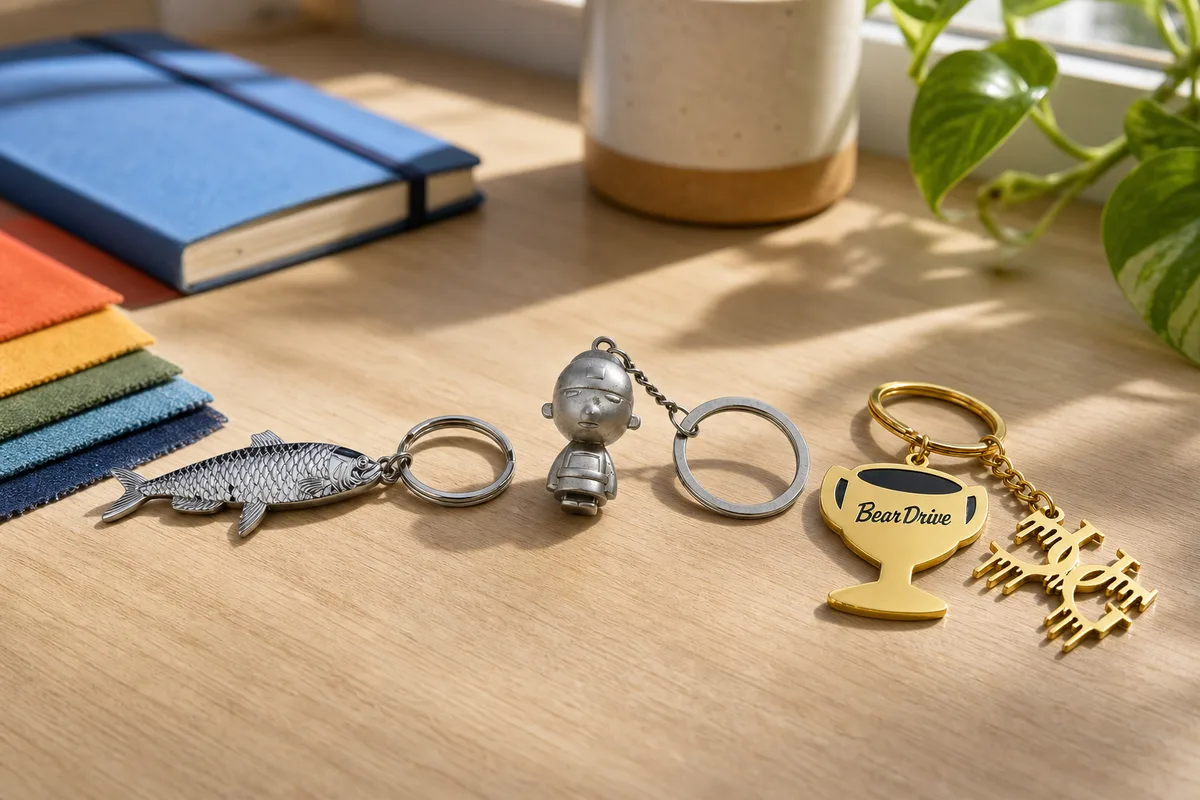

How Metal Keychain Thickness Changes the Product
Thickness affects rigidity, weight, relief, edge feel and packaging. During early quotation, some flat stamped or enamel designs may be discussed at approximately 1.5-2.0 mm. This is only an early reference, not a universal standard or a fixed factory specification. The final choice depends on artwork, material, dimensions, openings, connection points, process and intended use.
Flat and Enamel Constructions
Flat stamped pieces need a clear outline and workable connection area. Soft enamel and hard enamel pieces also need suitable recessed color areas, raised borders and a body thickness that remains practical to carry.
Cast, Functional and Moving Constructions
Die-cast, 3D, bottle opener and moving designs need a joint review of body thickness, relief height, clearances and hardware. The highest relief point should be recorded separately from the metal edge thickness.
| Construction | How thickness is considered | Key approval question |
|---|---|---|
| Flat stamped keychains | Supports the outline, openings and connection area while staying practical to carry. | Is the body clear and balanced with hardware attached? |
| Soft enamel keychains | Recessed color and raised borders must remain clear. | Do separators and color areas read at physical size? |
| Hard enamel keychains | Needs workable recesses, clean borders and a polishable surface. | Do intended lines survive filling and polishing? |
| 2D die-cast keychains | Raised and recessed levels are reviewed together with the edge and connection point. | Are relief levels and bridges suitable for the assembly? |
| 3D sculpted keychains | Deep or rounded forms may need a different body thickness and a separate maximum-height review. | Does the quote distinguish body thickness from relief height? |
| Bottle opener keychains | The opening and surrounding metal form part of the functional structure. | Does the sample combine opening, balance and orientation? |
| Moving or spinning keychains | Thickness, clearances and connections must allow movement. | Do the parts move while the assembly stays compact? |
Die-cast, deep-relief, 3D, bottle-opener and moving structures may need a different body thickness from a flat stamped piece. Record body thickness, maximum 3D height and any specified weight as separate fields in the final confirmation document.

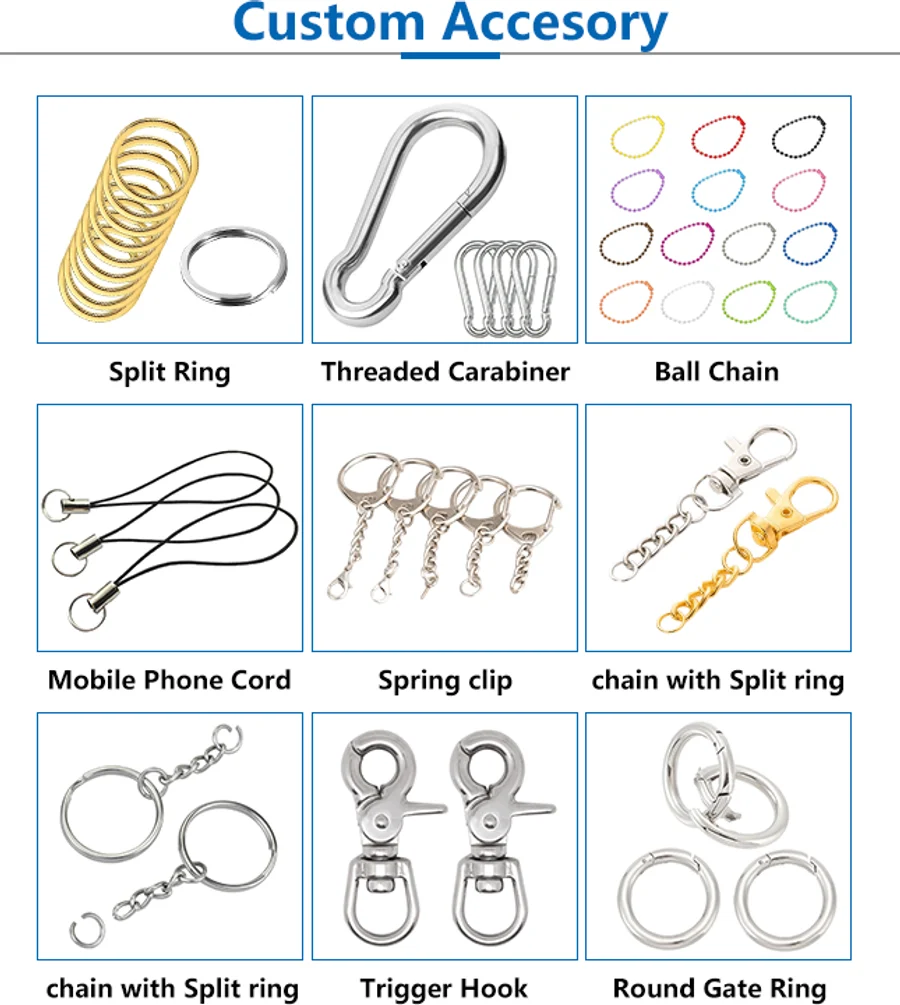

How Attachments Affect Finished Dimensions
Attachment choice changes finished length, hanging direction, package clearance and the position of the connection point. In this size guide, record the selected hardware only as part of the completed metal-keychain specification.
For a comparison of rings, clasps, chains and loops across metal, PVC, acrylic and fabric products, see our keychain attachment guide.

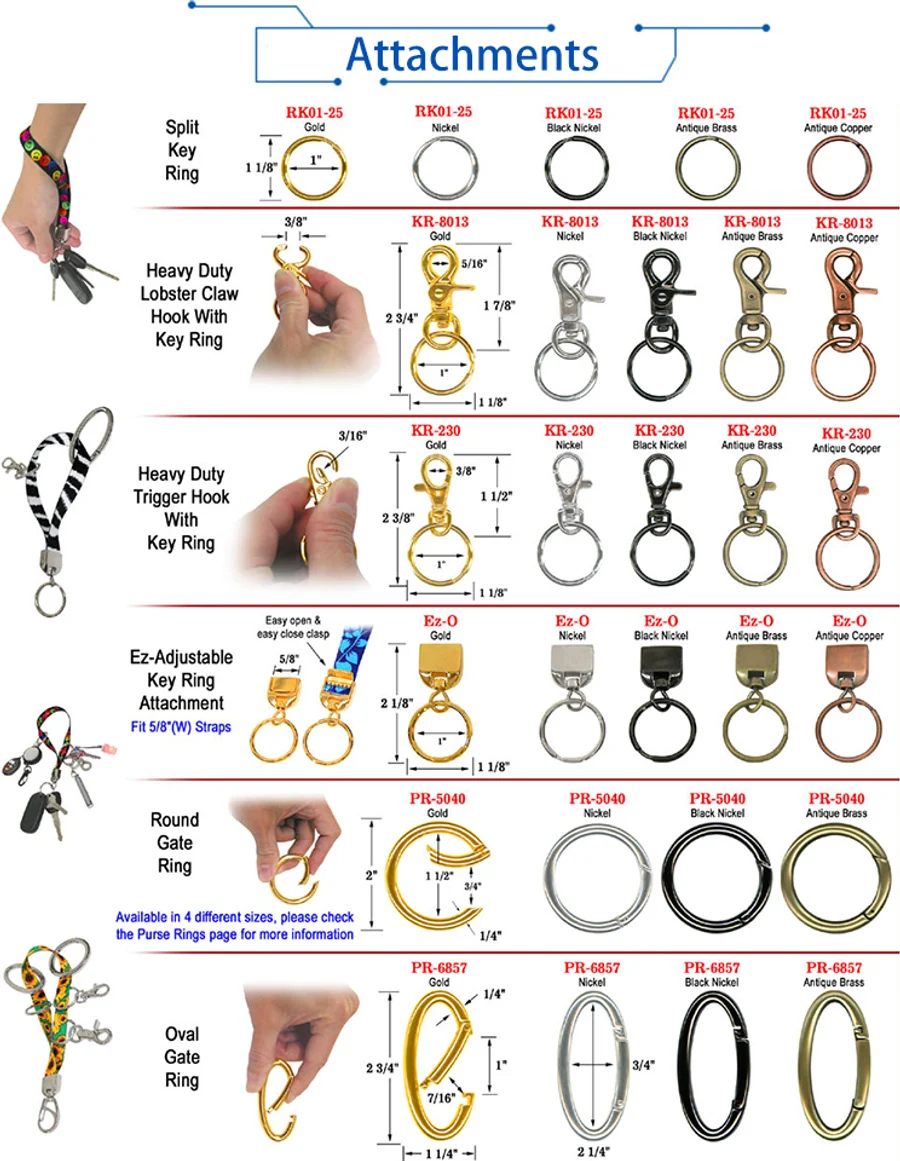

These reference sheets illustrate hardware forms only. Confirm the selected model, finish, dimensions and availability on the quotation and physical sample.
- Overall finished length: measure the complete assembled keychain end to end in the agreed position, including the selected hardware.
- Connection point: identify the eyelet, jump ring, chain or integrated loop used to join the body and hardware.
- Orientation: confirm which face of the metal body appears forward when the completed keychain hangs.
- Packaging clearance: check that the selected attachment and its movement fit the pouch, backing card or box.
Record Attachment Details in the Specification
State the attachment type, finish, connection method, finished length and intended hanging direction on the quotation or approved drawing. This makes the physical sample easier to compare with the agreed dimensions and packaging requirements. For attachment-type selection, use the keychain attachment guide.

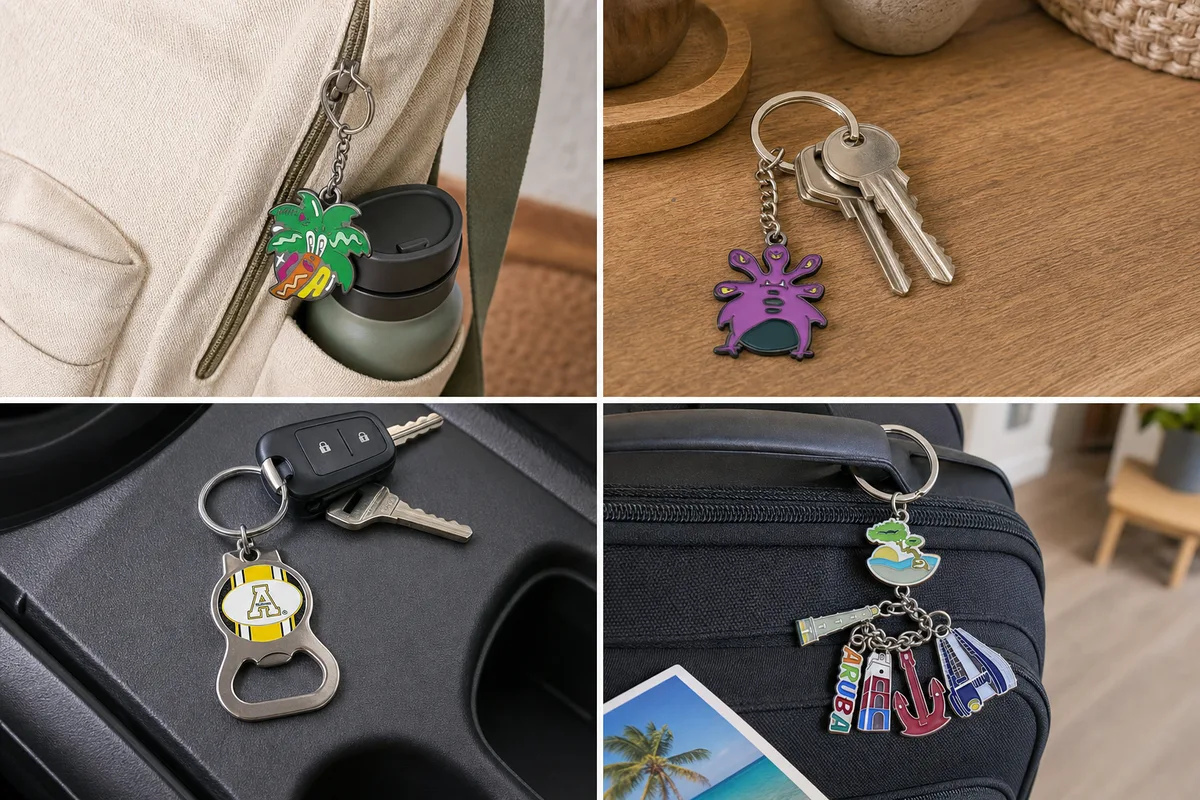

Match Size and Hardware to the Application
Set priorities from the application before selecting dimensions. The same logo may need different hardware for a giveaway than for retail.
| Application | Specification focus |
|---|---|
| Corporate promotional gifts | Clear logo, comfortable handling, practical ring or clip and easy distribution packaging. |
| Tourism souvenirs | Recognizable landmark, suitable finished length and an attachment suited to display and handling. |
| Retail merchandise | Consistent finish, front-facing presentation, balanced weight and protected packaging. |
| Automotive keychains | Clear emblem, compact length and hardware suited to the intended use. |
| Hotel or property key tags | Readable identification, suitable body shape and easy handling. |
| Club and event merchandise | Clear event or club identity, practical attachment and a sample that confirms orientation. |
| Bottle opener keychains | Functional opening, edges comfortable to handle, balance and unobstructed connection. |
| Mascot and licensed-character merchandise | Recognizable silhouette, room for key features and hardware that does not hide the character. |
PVC, woven and leather are useful comparisons, but this guide focuses on metal bodies and hardware. Confirm the selected metal body and hardware as one assembled sample.
Connection Point, Orientation and Structural Risks
Connection areas are common approval points when the proof shows front artwork but not how the assembly hangs. Mark the attachment hole position and front direction.
- Attachment hole position: confirm vertical, horizontal or angled hanging.
- Narrow metal bridges: review thin connections for the selected material and process.
- Thin projections and sharp points: review character features and openwork for handling and finishing.
- Product balance: a heavy body can pull small hardware into an awkward position.
- Logo direction: confirm which side faces forward when hanging or clipped.
- Jump-ring closure: check that the ring is closed and aligned.
Do not substitute generic hardware, wire diameter, hole size, edge distance or pull-force values. Confirm assembly-specific details on the approved drawing or sample.
What to Check on a Physical Sample
A sample is the point where a digital specification becomes a real assembly. Use a written checklist and compare the sample with the approved artwork, not only with a product photograph.
For a functional or moving design, define any factory testing around the real product application before mass production. During sample review, compare the approved drawing with the assembled piece, check the metal body separately from the hardware and record any required correction before approval. Shipment inspection should follow the agreed inspection plan and confirm the approved dimensions, hardware assembly, appearance and packaging.
- Metal body length and width.
- Body thickness and maximum 3D height.
- Overall finished length, measured end to end in the agreed position with hardware attached.
- Weight, when it is part of the specification.
- Front and back appearance, including logo direction and relief.
- Hardware type, finish and attachment orientation.
- Jump-ring closure, split-ring closure and gap alignment.
- Swivel movement, when a swivel component is specified.
- Burrs, sharp edges, unfinished openings or surface damage.
- Plating, enamel, printing and color appearance.
- Packaging protection and clearance around the assembled product.
Information Required for an Accurate Quote
Send the following information when requesting a quotation for bulk custom metal keychains:
- Artwork or logo, preferably in a production-friendly format.
- Intended use and target recipient.
- Metal body size, with length and width reference points.
- Target thickness, if already defined.
- Material preference, if known.
- Flat, 2D or 3D construction.
- Plating and color requirements.
- Attachment type, split-ring size if specified and preferred finished orientation.
- Quantity.
- Packaging.
- Destination.
- Required delivery date.
If some choices are open, say so. Clear customer requirements and a request to recommend a suitable attachment are more useful than an assumed ring size that does not match the body or application.
Frequently Asked Questions
What is the standard size of a custom metal keychain?
There is no single standard size for every custom metal keychain. Choose a body size that keeps the artwork clear and the finished assembly practical, then confirm body dimensions separately from the overall finished length.
How thick should a metal keychain be?
Some flat stamped or enamel designs may be discussed at approximately 1.5-2.0 mm during early quotation. That reference does not apply to every design. Die-cast, deep-relief, 3D, bottle-opener and moving structures may need a different body thickness after artwork review.
What is the difference between body size and finished length?
Body size describes the custom metal component. Overall finished length is the end-to-end length of the complete assembled keychain in an agreed position, including rings, chains, hooks or clasps. Record both separately on the quotation or approval drawing.
Which keychain attachment is the most practical?
A split ring is often practical for direct key attachment, while a lobster clasp or swivel hook can be easier for bags and removable merchandise. The best choice depends on handling, orientation, appearance, package size and the complete assembly.
Should buyers approve a physical sample before mass production?
A physical sample is recommended when size, thickness, weight, relief, hardware, function, finish or packaging matters. It lets the buyer check the real assembly before those details are repeated in bulk production.
Conclusion
The right specification is not the largest size or thickest metal. Balance artwork clarity, dimensions, thickness, weight, connections, hardware, application, packaging and budget. State measurement points, separate body size from finished length and confirm the assembly with a sample.
For a comparison of zinc alloy, brass, stainless steel and iron, read our custom metal keychain materials guide. For the broader production context, see our custom metal crafts manufacturing process guide. When you are ready to review a custom metal keychain size and product route, explore our custom metal keychains and send your logo, quantity, intended use, preferred attachment and delivery date.
